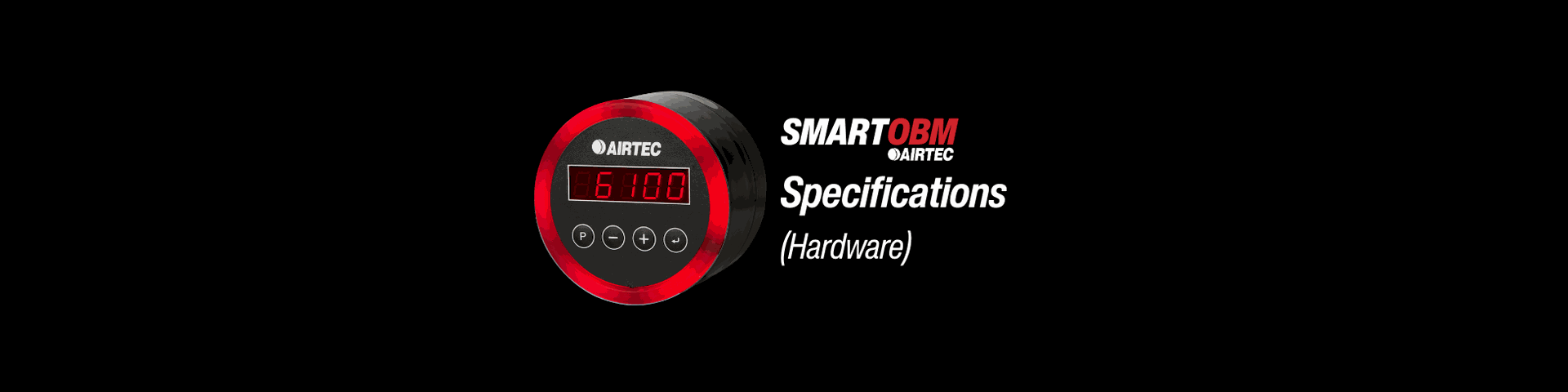

Contents
Electrical
Input Voltage
Power Consumption
Protection
7 - 32VDC
Typical Average 100 mA @12V DC
Reverse and Over Voltage Protect
Mechanical
Display
Dimensions
Materials
5 Digit 7-Segment Full colour LED ring
80x80x55.8mm (HxHxD)
Base: 6061 Aluminium
Cover: Polycarbonate
Environmental
Operating Temperature
Dust and Water Ingress
-40 to + 85°C
IP66
Communication
Wireless
Wired
Bluetooth 5.3
RS232
Sensors
Pressure
Ceramic Pressure Sensors
(Accuracy ± 0.5 % Full Scale)
