AXS - Troubleshooting
Contents
Error | Meaning | Troubleshoot |
Fluctuation or Erratic Readings | Electronic Height Control Valves can sometimes cause unstable or erratic scale readings. | To stabilise the reading, try lowering the suspension and then re-inflating it back to the normal ride height. Use the same process when calibrating the scales for consistency and accuracy. |
Fluctuating Weight Readings | Fluctuations can occur ir height control values are worn and no longer return to a consistent position. | Inspect the system for air leaks and check for work or loose linkages that may affect value performance. |
Dump Test Procedure
To troubleshoot fluctuation issues, perform a dump test as follows:
- Use an airbag dump valve to release air from the suspension system.
- As the airbag pressure decreases, the scale readings should drop accordingly.
- Once fully deflated, re-inflate the airbags to the original ride height.
- The scale readings should return to their initial values.
- This process helps verify that the system is responding accurately to changes in air pressure.
Error Codes
Codes | Meaning | Troubleshoot |
NA | Gauge disconnected or out of range. | Ensure trailer gauges are powered and correctly connected to the current combination. If the app or in-cab display is displaying a gauge that's no longer part of the set-up rescan to updated the configuration. |

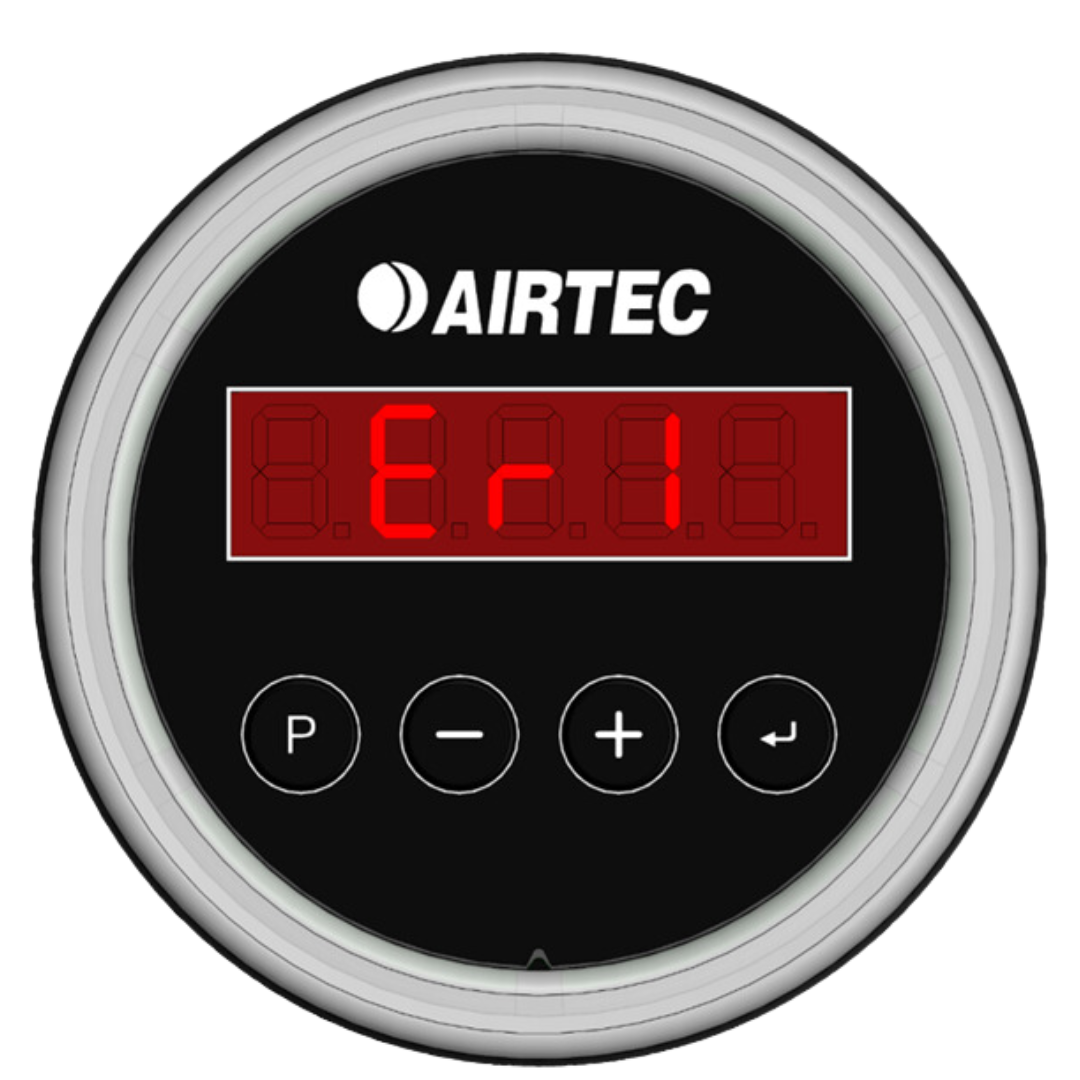

ER1
| Invalid Gauge Calibration | Verify the calibration settings and recalibrate the gauge if necessary. |

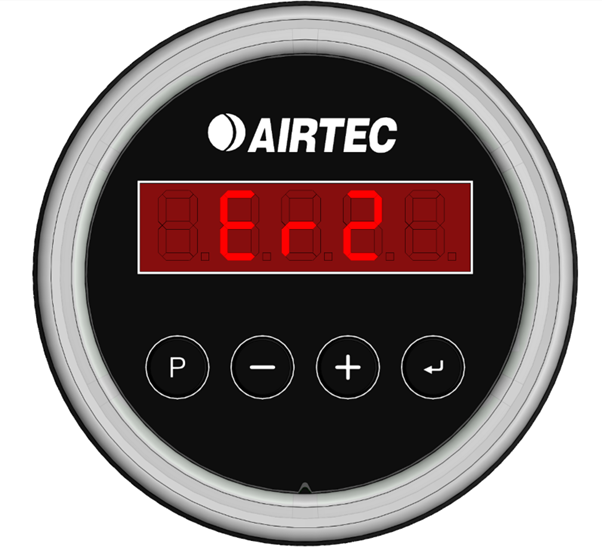

ER2
| Gauge mass out of range | The high calibration point has been set at a lower air pressure than the low point. Recalibrate the gauge to correct this error. |

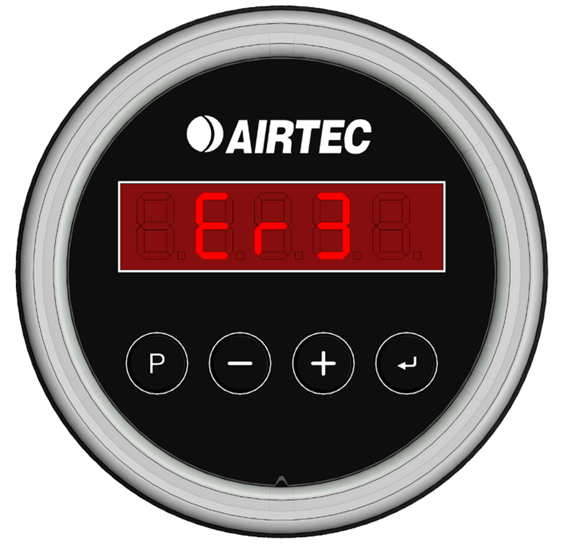

ER3
| Possible tampering detected | The measured mass is over 5% below the calibrated tare weight, which may indicated:
|
